Chemical Bund Wall Construction

Chemical bund walls play a critical role in industrial and warehouse settings where hazardous liquids are stored or handled. These walls act as a safety barrier, preventing chemical spills from spreading and causing environmental damage or safety hazards. Building a chemical bund using concrete is a reliable and durable method that many commercial and industrial facilities prefer. This post outlines the essential steps involved in constructing a concrete bund wall, highlighting practical tips and considerations to ensure safety and compliance.

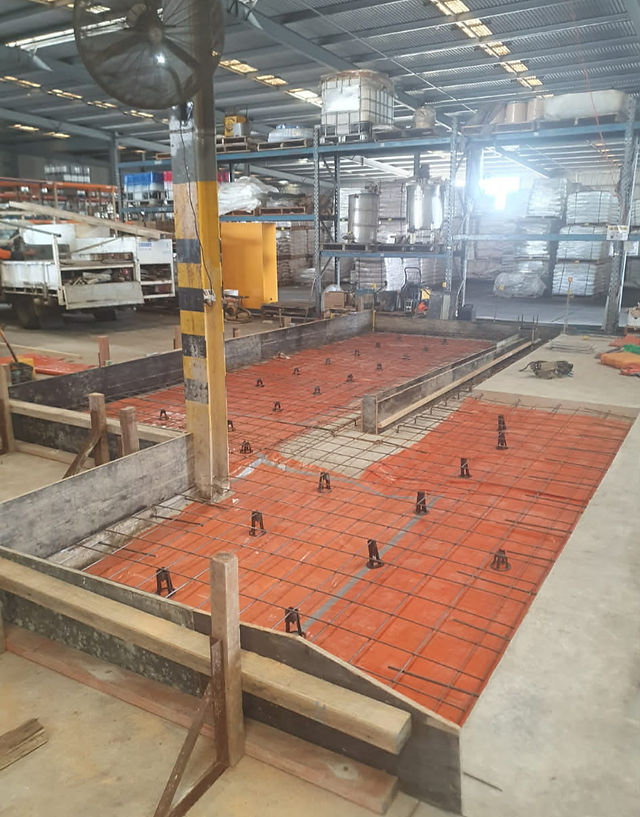

Concrete bund wall under construction around chemical storage area

Understanding the Purpose of a Chemical Bund Wall

A chemical bund wall is designed to contain spills or leaks from tanks or containers holding hazardous substances. The concrete bund acts as a physical barrier, preventing chemicals from escaping into the environment or mixing with water sources. This containment is vital for:

• Protecting workers and nearby communities from exposure

• Preventing soil and groundwater contamination

• Complying with environmental regulations and safety standards




Concrete is often chosen for bund walls because of its strength, durability, and resistance to many chemicals. It also requires less maintenance compared to other materials like steel or earth bunds.

Planning and Design Considerations

Before construction begins, careful planning is essential. The design of the chemical bund must meet specific requirements based on the type and volume of chemicals stored. Key factors include:

• Capacity: The bund must hold at least 110% of the volume of the largest tank or container inside it.

• Height and thickness: The wall height should be sufficient to contain spills, typically at least 300 mm above ground level. Thickness depends on structural needs and soil conditions.

• Chemical compatibility: Concrete mix and any protective coatings should resist the stored chemicals.

• Drainage and sump design: Bunds often include a sump or drainage system to collect and safely remove any leaked liquids.

• Access and safety features: Walkways, ladders, and signage should be incorporated for safe operation and maintenance.




Consulting local regulations and industry standards such as EPA guidelines or OSHA requirements is crucial during this phase.

Step 1: Site Preparation

Proper site preparation lays the foundation for a strong and effective concrete bund. This step involves:

• Clearing the area of debris, vegetation, and loose soil

• Leveling the ground to ensure a stable base

• Marking the bund perimeter according to design plans

• Excavating trenches for the foundation if required




Compacting the soil beneath the bund area improves stability and prevents settling that could crack the concrete wall.

Step 2: Building the Foundation

A solid foundation supports the weight and pressure of the concrete wall and any contained liquids. The foundation process includes:

• Installing formwork to shape the foundation

• Placing reinforcement steel bars to increase strength

• Pouring concrete for the foundation slab or footings. Our preferred concrete suppliers are Adbri, Heidelberg Materials and Premix Concrete.

• Allowing sufficient curing time, typically 7 to 14 days, depending on weather and concrete type




The foundation must be level and free of cracks before proceeding to the wall construction.

Step 3: Constructing the Concrete Wall

With the foundation ready, the next step is building the concrete wall itself. This involves:

• Setting up vertical formwork to shape the bund wall

• Installing vertical and horizontal reinforcement bars inside the formwork

• Pouring concrete in layers to avoid air pockets and ensure uniform strength

• Curing the wall properly to achieve maximum strength and durability




The wall should be smooth and free of defects. Any joints or cracks must be sealed to maintain chemical resistance.

Step 4: Applying Protective Coatings

Concrete alone may not resist all chemical types, especially aggressive acids or solvents. Applying a protective coating enhances the bund's durability and safety. Common coatings include:

• Epoxy resin linings

• Polyurethane coatings

• Cementitious waterproofing layers




These coatings prevent chemical penetration and make cleaning easier. The choice depends on the chemicals stored and environmental conditions.

Step 5: Installing Drainage and Safety Features

A well-designed chemical bund includes drainage systems to manage spills safely. This step covers:

• Installing sumps or collection pits at low points

• Fitting pumps or valves to remove collected liquids

• Adding non-slip walkways and access ladders

• Placing warning signs and safety barriers around the bund




Regular inspection and maintenance of these features are essential to keep the bund functional.

Step 6: Final Inspection and Testing

Before putting the bund into service, conduct thorough inspections and tests:

• Check for cracks, leaks, or weak spots in the concrete wall

• Test the chemical resistance of coatings

• Verify drainage and sump operation

• Confirm compliance with safety and environmental standards




Documenting these checks helps with regulatory compliance and future maintenance planning.

Maintenance Tips for Long-Term Safety

Maintaining a chemical bund ensures it continues to provide effective containment. Recommended practices include:

• Regular visual inspections for damage or wear

• Prompt repair of cracks or coating failures

• Cleaning to remove chemical residues and debris

• Testing drainage systems periodically

• Updating safety signage as needed




A maintenance schedule tailored to the facility’s chemicals and usage patterns will extend the bund’s lifespan.
